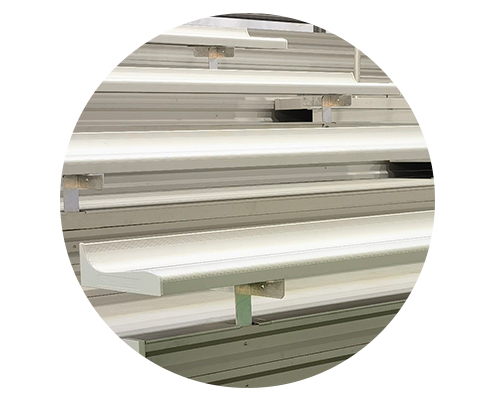

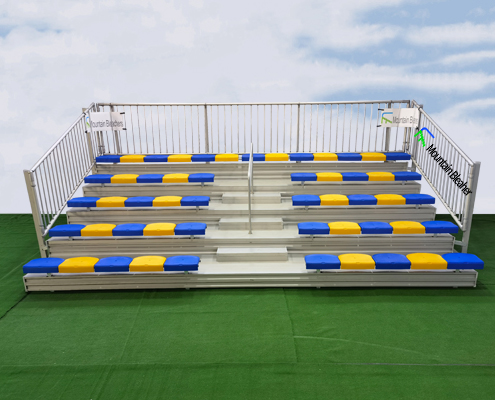

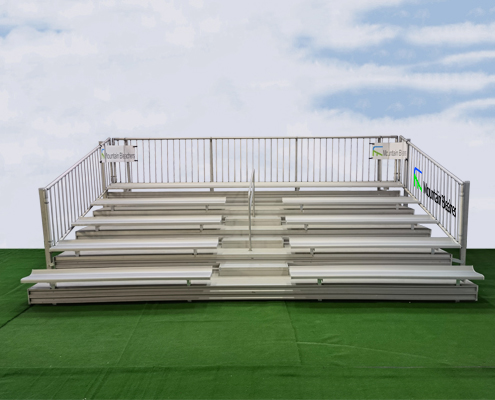

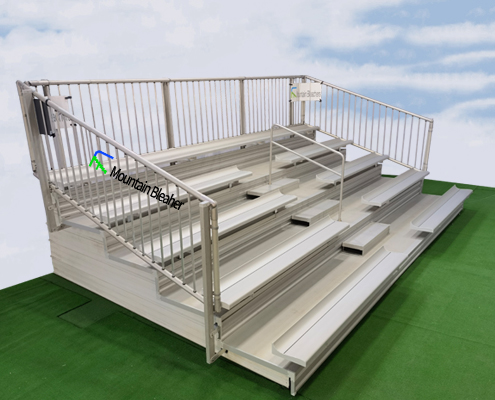

This series of products are made of 6061-T6 aluminum alloy material，Aluminum Seat Plank 300mm*100mm*50mm*2mm. It’s designed according to ergonomics, more comfortable and safer, variety color options are available for the surface layer by powder spraying, more beautiful;

Meanwhile we provide 2 kinds of Aluminum Seat Plank for your choice:250mm and 291mm.

Material of Support Structure:50mm*5mm Aluminum Angle,Surface Treatment: Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

This series of products are the hot-selling products in market!

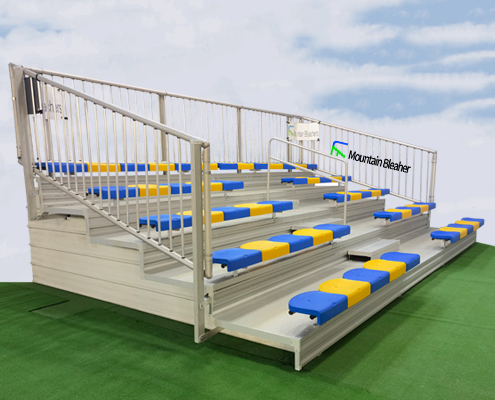

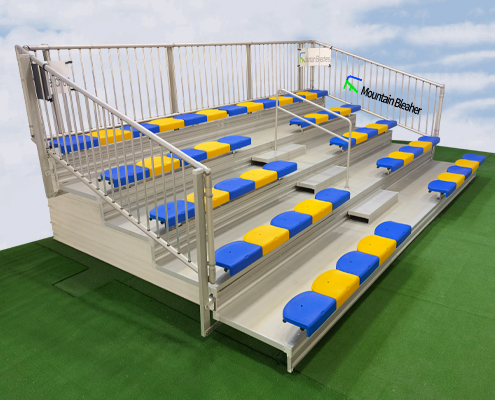

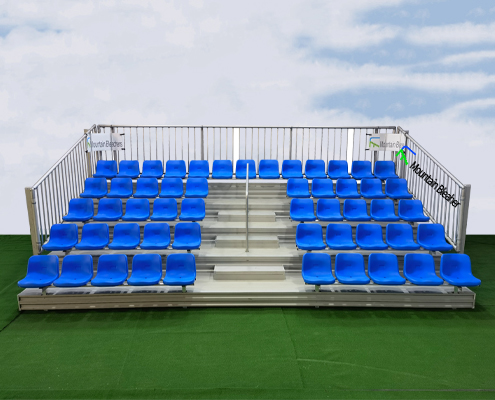

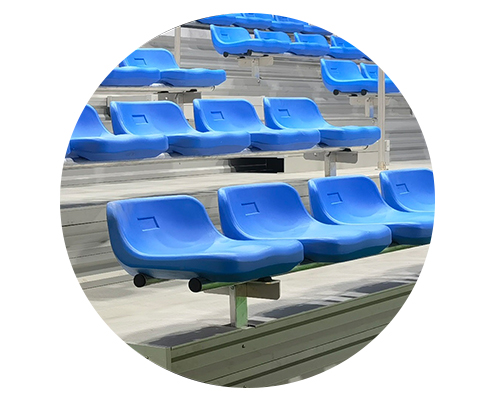

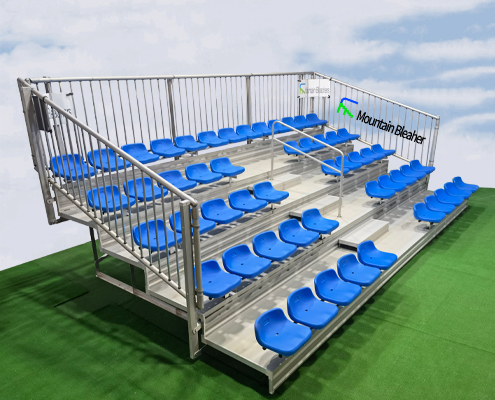

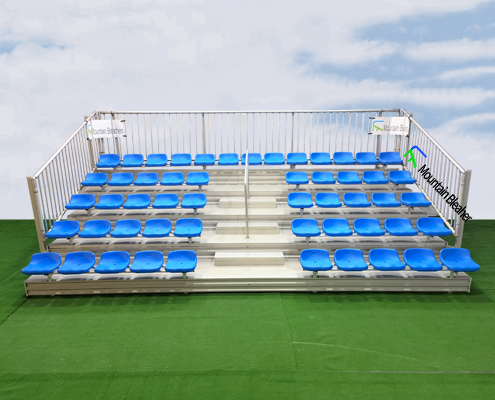

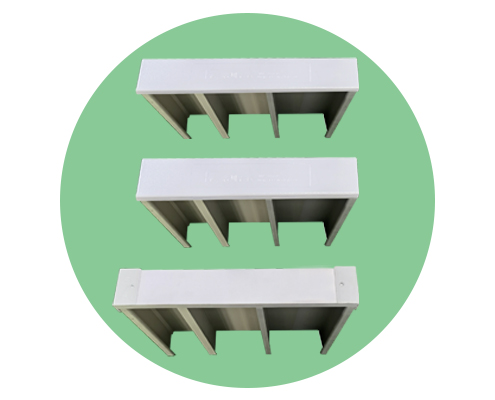

This series of products are match with HDPE Blow Moulded Plastic Seats, more comfortable. At the same time provides a richer color combination, looks more beautiful.

Material of Support Structure:50mm*5mm Aluminum Angle.Material:6061-T6.Surface Treatment:Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

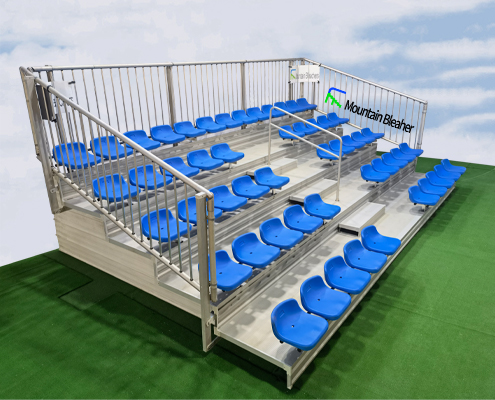

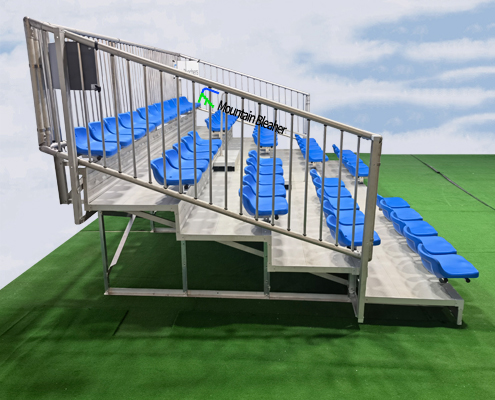

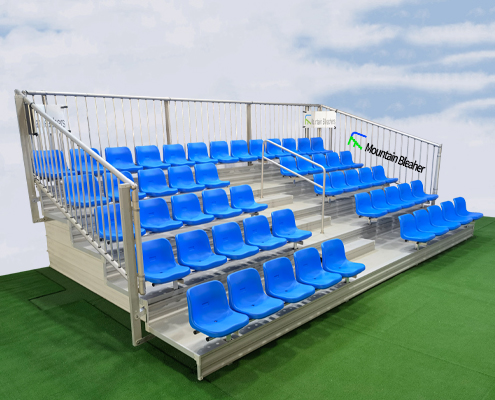

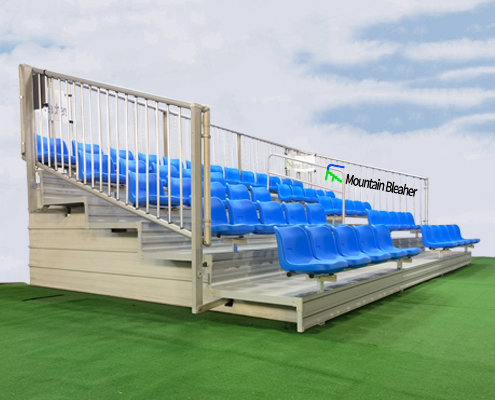

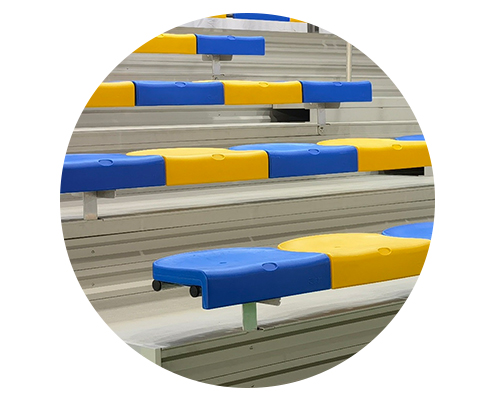

This series of products are match with Low Backrest HDPE Blow Moulded Plastic Seats.It’s designed according to ergonomics, more comfortable.Seats can be combined in different colors.Because the seat is more wider, the row spacing of this series of products is recommended to be 750mm and above.

Material of Support Structure:50mm*5mm Aluminum Angle.Surface Treatment:Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

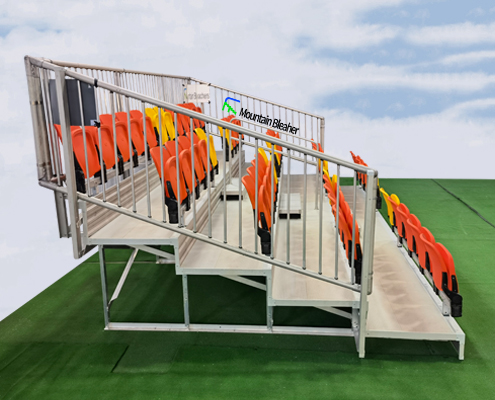

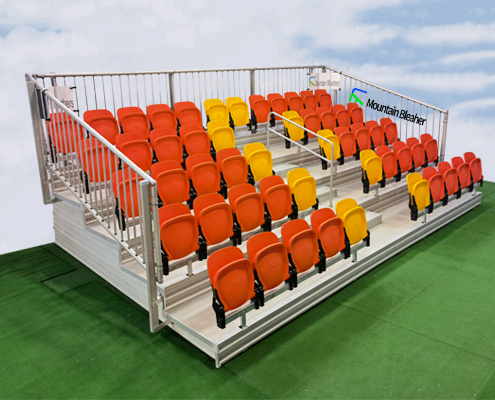

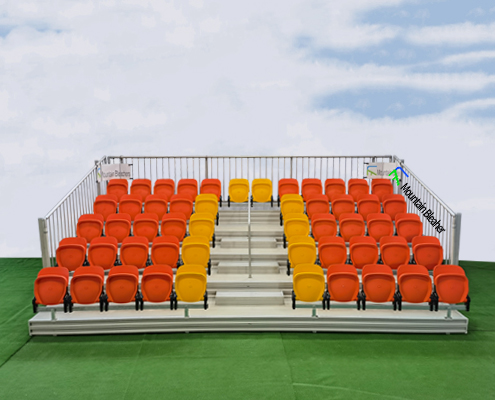

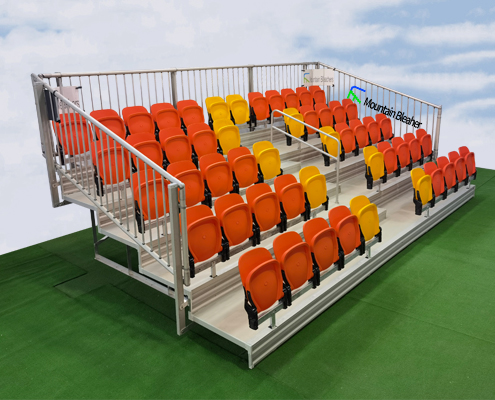

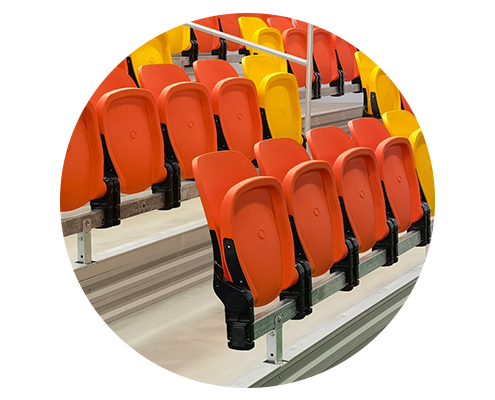

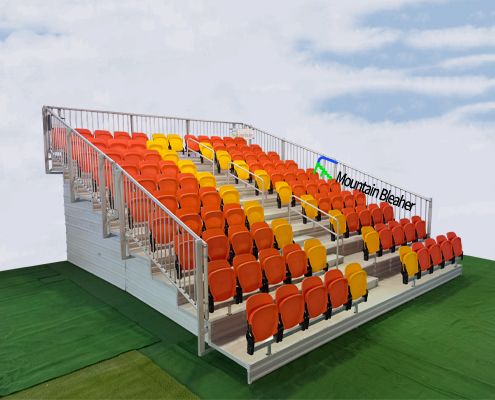

This series of products are match with Injection Moulded Polypropylene (PP) Tip-up seat.It’s designed according to ergonomics, more durable, comfortable and safer. Meanwhile it’s more safety with the protection of backrest.Seats can be combined in different colors.Because the seat is more wider, the row spacing of this series of products is recommended to be 750mm and above.

Material of Support Structure:50mm*5mm Aluminum Angle.Surface Treatment:Anodizing.

Total 3 models for this series, please refer to the drawings for the details of each model.

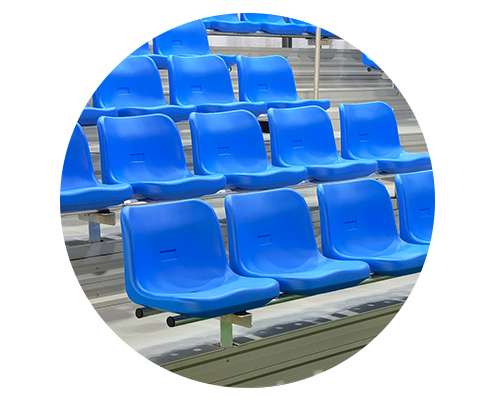

The HDPE blow-molded plastic seat with backrest is more comfortable, because the protection of the backrest is also safer. Product solutions in different color groups are available. The layer width of this series of products is recommended to be 750mm or more. This series of products is more suitable for indoor or sun-shading environment.

Provide 2 kinds of pedal options: 291mm*50mm*2mm, 397mm*50mm*2mm,
Layer width: 750, 800;
This series has 4 different models for you to choose from, please check the drawing for details.

Before purchasing aluminum grandstands, let’s learn IBC-International Building Code together, so that we can understand more what is the most important.

SECTION 303

STRUCTURAL DESIGN

• 303.1 Design. The structural design shall be in accordance with the building code.
• 303.2 Loads.Bleachers, folding and telescopic seating, and grandstands shall be designed for a uniform live load of 100 pounds per square foot(psf)(4788 Pa). Press boxes shall be designed for a uniform live load of 50 psf (2394 Pa).
• 303.6 Deflections. Live load deflection of structural mem- bers shall be limited to 1/200 of the span.
• 303.7 Foundations. A foundation, designed to support all loads, shall be provided as required by the building code.

Exception: Outdoor installations that are directly sup- ported on the ground that is adequate to support the super- imposed loads.

SECTION 311

OPEN SPACES BENEATH FOOTBOARDS AND SEATBOARDS

311.1 Open spaces at footboards and seatboards. Where an opening between the seatboard and footboard is located more than 30 inches(762 mm) above the floor or ground below, the opening shall be closed with construction such that a 4-inch-diameter(102 mm)sphere cannot pass through.

Our products fully meet the requirements of IBC-International Building Code. In fact, our products are better in terms of safety and comfort. We provide three models for you to choose from.
Standard Models：Row Spacing：650mm，Rise：220mm

Preferred Models：Row Spacing：750mm，Rise：250mm
Deluxe Models：Row Spacing：800mm，Rise：300mm

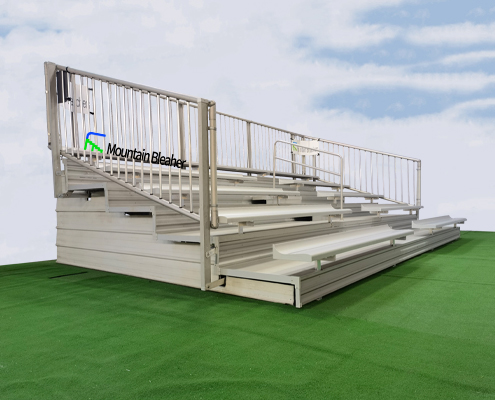

All the metal grandstands are 5 rows which shown in this chapter. Aluminum stands of this structural are suitable for 3-15 floors. We will provide design and production services according to your requirements.
Glad to receive your email or call, we will design for you free of charge in accordance with your requirements of the metal grandstands.
